Clone Graph

Created: August 11, 2019 by [lek-tin]

Last updated: August 11, 2019

Given a reference of a node in a connected undirected graph, return a deep copy (clone) of the graph. Each node in the graph contains a val (int) and a list (List[Node]) of its neighbors.

Graph

Example:

Input:
{"$id":"1","neighbors":[{"$id":"2","neighbors":[{"$ref":"1"},{"$id":"3","neighbors":[{"$ref":"2"},{"$id":"4","neighbors":[{"$ref":"3"},{"$ref":"1"}],"val":4}],"val":3}],"val":2},{"$ref":"4"}],"val":1}

Explanation:
Node 1's value is 1, and it has two neighbors: Node 2 and 4.
Node 2's value is 2, and it has two neighbors: Node 1 and 3.
Node 3's value is 3, and it has two neighbors: Node 2 and 4.
Node 4's value is 4, and it has two neighbors: Node 1 and 3.

Note

  1. The number of nodes will be between 1 and 100.
  2. The undirected graph is a simple graph, which means no repeated edges and no self-loops in the graph.
  3. Since the graph is undirected, if node p has node q as neighbor, then node q must have node p as neighbor too.
  4. You must return the copy of the given node as a reference to the cloned graph.

Solution

Depth first search

/*
// Definition for a Node.
class Node {
    public int val;
    public List<Node> neighbors;

    public Node() {}

    public Node(int _val,List<Node> _neighbors) {
        val = _val;
        neighbors = _neighbors;
    }
};
*/
class Solution {
    private HashMap<Node, Node> visited = new HashMap<Node, Node>();

    public Node cloneGraph(Node node) {
        return search(node);
    }

    public Node search(Node node) {
        if (node == null) return null;

        if (visited.containsKey(node)) return visited.get(node);
        Node dup = new Node(node.val, new LinkedList<Node>());
        visited.put(node, dup);

        for (Node neighbor: node.neighbors) {
            Node copy = search(neighbor);
            dup.neighbors.add(copy);
        }

        return dup;
    }
}

Breadth first search

/*
// Definition for a Node.
class Node {
    public int val;
    public List<Node> neighbors;

    public Node() {}

    public Node(int _val,List<Node> _neighbors) {
        val = _val;
        neighbors = _neighbors;
    }
};
*/
class Solution {
    public Node cloneGraph(Node node) {
        if (node == null) return null;

        Queue<Node> visited = new LinkedList<Node>();
        HashMap<Node, Node> map = new HashMap<Node, Node>();

        visited.add(node);
        Node dup = new Node(node.val, new LinkedList<Node>());
        map.put(node, dup);

        while (!visited.isEmpty()) {
            Node candidate = visited.poll();
            for (Node neighbor: candidate.neighbors) {
                Node copy = map.get(neighbor);
                if (copy == null) {
                    // If copy doesn't exist, we create a new node with the value of the current neighbor and assign it to copy.
                    visited.add(neighbor);
                    copy = new Node(neighbor.val, new LinkedList<Node>());
                    map.put(neighbor, copy);
                }
                // map.get(candidate): the duplicate
                map.get(candidate).neighbors.add(copy);
            }
        }

        return map.get(node);
    }
}

BFS

from collections import deque
"""
# Definition for a Node.
class Node:
    def __init__(self, val, neighbors):
        self.val = val
        self.neighbors = neighbors
"""
class Solution:
    def cloneGraph(self, node: 'Node') -> 'Node':
        if node == None:
            return Node

        copy = Node(node.val, [])
        clones = {node: copy}
        q = deque([node])

        while q:
            candidate = q.popleft()
            clone = clones[candidate]
            # BFS
            for neighbor in candidate.neighbors:
                # If a clone node exists, copy edge by appending the mapped node to clone.neighbors
                if neighbor in clones:
                    clone.neighbors.append(clones[neighbor])
                # Otherwise, construct new a node with neighbor.val and an empty list.
                else:
                    newNode = Node(neighbor.val, [])
                    clones[neighbor] = newNode
                    clone.neighbors.append(newNode)
                    q.append(neighbor)
        return copy

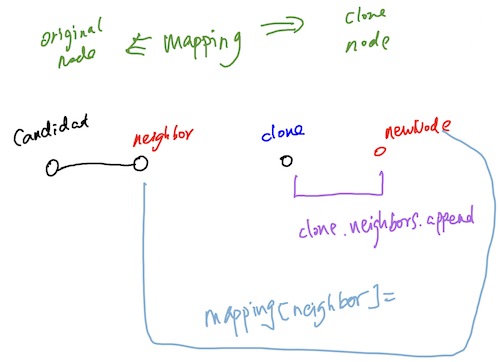

Mapping shown: Clone graph
