Construct Binary Tree From Inorder and Postorder Traversal

Created: August 24, 2019 by [lek-tin]

Last updated: August 24, 2019

Given inorder and postorder traversal of a tree, construct the binary tree.

Note

You may assume that duplicates do not exist in the tree.

For example, given

inorder = [9,3,15,20,7]
postorder = [9,15,7,20,3]

Return the following binary tree:

    3
   / \
  9  20
    /  \
   15   7

Hint

construct-binary-tree-from-preorder-and-inorder-traversal

Solution:

/**
 * Definition for a binary tree node.
 * public class TreeNode {
 *     int val;
 *     TreeNode left;
 *     TreeNode right;
 *     TreeNode(int x) { val = x; }
 * }
 */

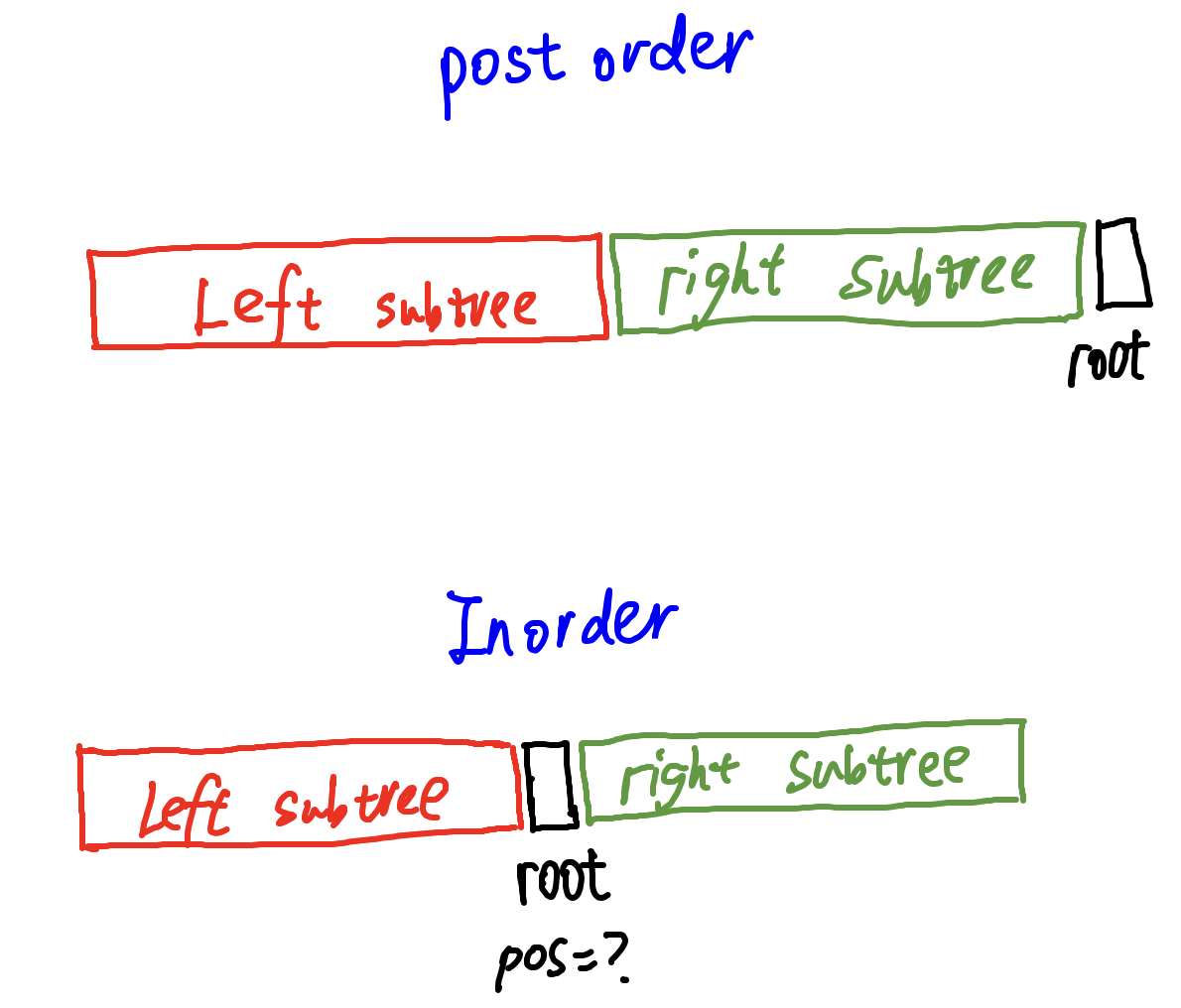

// the idea is to start from the rightmst part of the postorder because that is always the root; then divide the inorder as per the value of the root call the right child first because after accesing the parent in postorder the right child is encountered first and then the left child
class Solution {
    int postOrderIndex;
    public TreeNode buildTree(int[] inorder, int[] postorder) {
        postOrderIndex = postorder.length - 1;
        return buildTreeUtil(inorder, postorder, 0, inorder.length - 1);
    }

    public TreeNode buildTreeUtil(int[] inorder, int[] postorder, int start, int end) {
        if(start > end) return null;
        TreeNode newNode = new TreeNode(postorder[postOrderIndex--]);
        if(start == end) return newNode;
        int index = searchRootInInorder(inorder, newNode.val, start, end);
        newNode.right = buildTreeUtil(inorder, postorder, index + 1, end);
        newNode.left = buildTreeUtil(inorder, postorder, start, index - 1);
        return newNode;
    }

    int searchRootInInorder(int[] inorder, int target, int start, int end) {
        for(int i = start; i <= end; i++) {
            if(inorder[i] == target) return i;
        }
        return -1;
    }
}
# Definition for a binary tree node.
# class TreeNode:
#     def __init__(self, x):
#         self.val = x
#         self.left = None
#         self.right = None

class Solution:
    def buildTree(self, inorder: List[int], postorder: List[int]) -> TreeNode:
        if len(inorder) != len(postorder):
            return None
        n = len(postorder)
        return self.build(postorder, 0, n-1, inorder, 0, n-1)

    def findPosition(self, nodeList, start, end, target):
        for i in range(start, end+1):
            if nodeList[i] == target:
                return i
        return -1

    def build(self, postOrder, postStart, postEnd, inOrder, inStart, inEnd):
        if inStart > inEnd:
            return None

        root = TreeNode(postOrder[postEnd])
        root_post_inorder = self.findPosition(inOrder, inStart, inEnd, root.val)
        root.left = self.build(postOrder, postStart, postStart+(root_post_inorder-inStart)-1, inOrder, inStart, root_post_inorder-1)
        root.right = self.build(postOrder, postStart+(root_post_inorder-inStart), postEnd-1, inOrder, root_post_inorder+1, inEnd)
        return root
